Automatic Feeding and Sanitizing Pet Bowl

A smart pet feeder system with an interactive mobile app for the purpose of ensuring pet's health and wellbeings.

About the Project

Our goal in Senior Design is to design a automatic feeding and UV sanitation pet feeding system. Our Pet Bowl is the solution we came up with to combat the ongoing coronvirus epidemic and its effects on dogs. This system allows the user to be away while their pet could feed themselves without much of the worrying of cross-contamination. Our system detects incoming dogs using the ultrasonic sensor which will then activates the onboard NoIR camera module. Our Image recognition or Neural Networks sub system is capable of detecting the dog breed wether is day or night. Internal data is used to determine dispensable amount of food and water where final weights are measured again when the load cells are turned on. When the pet is done with the food and water data collected are sent to the Google Firebase and manual UV cleaning commences. Users can then download and view the recorded activities.

Documentation

EEL 4914 - Senior Design 1

EEL 4915 - Senior Design 2

Biography

Presentating Group 11 members

Katherine Gerosa

Katherin Gerosa

Group Leader & UV implementation

Katherine Gerosa is a senior at the University of Central Florida and will graduate with a Bachelor of Science in Photonic Science and Engineering. She has previously received a Bachelor of Science in Chemistry from Louisiana State University. She has an extensive research background focusing on the intersection of analytical chemistry and photonics – most notably researching in the only synchrotron source in the southern United States: Center for Advanced Microstructures and Devices. After graduation, she plans to work in industry before furthering her education and perusing a PhD in Chemistry.

Sixiong Yang

Sixiong Yang

Software and Raspberry PI related work

Sixiong Yang is a senior at the University of Central Florida and is working towards his Bachelor of Science in Computer Engineering. Sixiong has worked with various technologies such as Web development, Software coding and skills in digital animations. He has interned with sofitU, a startup company as a web development interns where he assisted the main developer with updating their website code and implemented new scripts. After graduation, Sixiong plans to pursue his interest with a focus in software/web development.

Brandon Gordon

Brandon Gordon

Sensors, MSP430 and Hardware testings

Brandon Gordon is a senior at the University of Central Florida and will graduate with a Bachelor of Science in Computer Engineering. Brandon has worked in various areas such as PCB design, web development, and artificial intelligence. He intends to pursue a career in computer hardware design.

Shravan Yandra

Shravan Yandra

Neural Networks

Shravan Yandra is a senior at the University of Central Florida and will graduate with a Bachelor of Science in Computer Engineering. In the future, he plans to work to as a Data Scientist and create more Neural Networks in order to improvise accuracy of the systems and datasets to solve real world problems that humans encounter in dayto- day life.

HC-05 Bluetooth Module
Food Bowl Housing
Final Presentation
Final Demo
MSP430 MCU

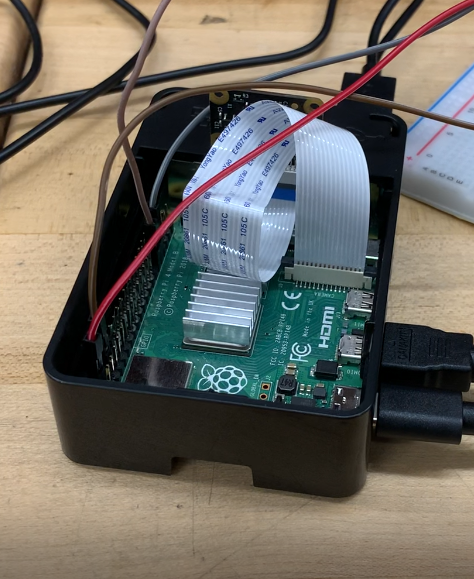

Raspberry PI 4

NoIR Camera Module V2

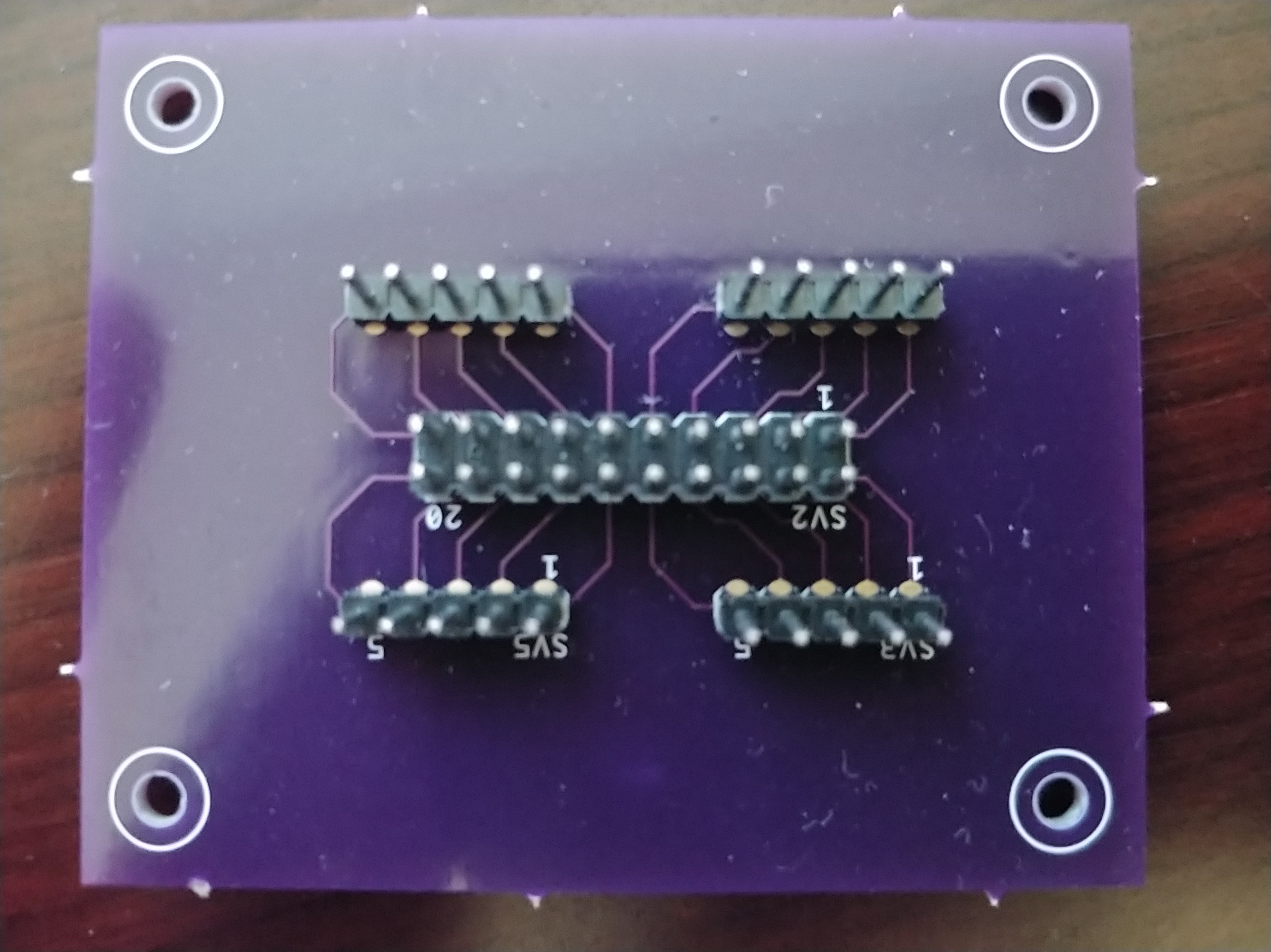

Custom pin extension PCB
Hx711 ADC Amplifier
2KG Loadcell Platform

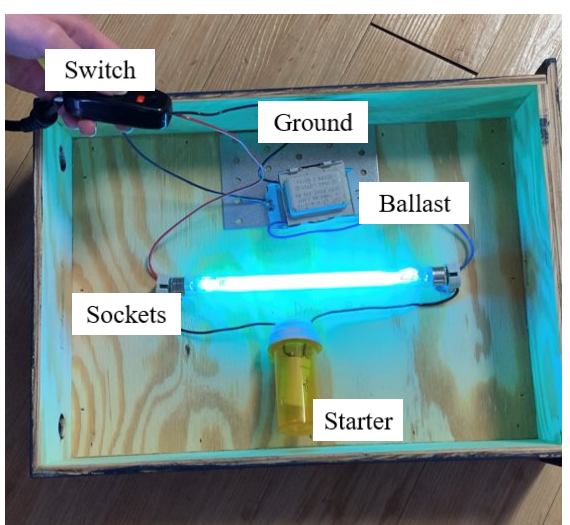

UV Lamp Setup

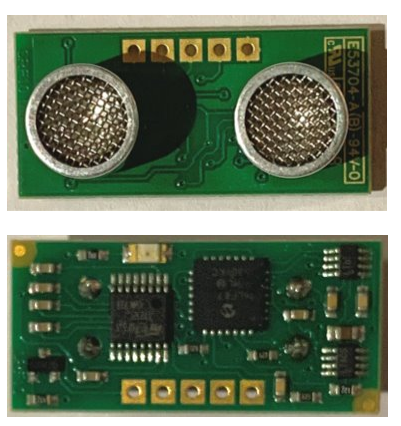

Ultrasonic Sensor
Senior Design Summer 2020 - Fall 2020: Group Funded Project
