Taken from inspiration from Neil Harbisson, the cyborg who can hear colors, our device will allow for individuals to see sound. In the simplest terms, this project’s intended purpose is to transform music into light. It receives an audio input chosen by the user and showcases a visual signal that is correlated to and therefore representative of the sound data. It can work with any smartphone via file upload. It converts and displays any musical data into visual display.

Divide and Conquer

10 page Divide and Conquer Document.

Project Role Assignments
Initial Budget
Preliminary Milestones
House of Quality

SD1 Final Report

Senior Design 1 Final Report - contains the original thoughts and ideas we had about the project, before we faced the challenges of SD2.

Research

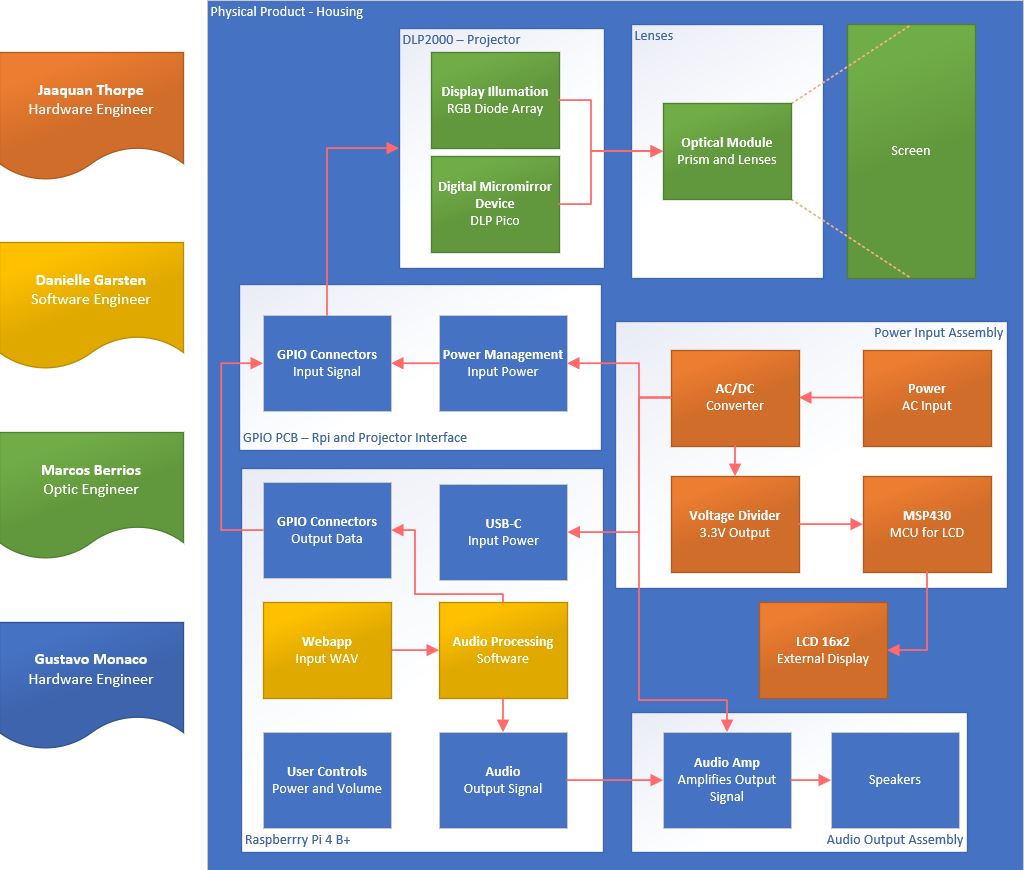

Block Diagram

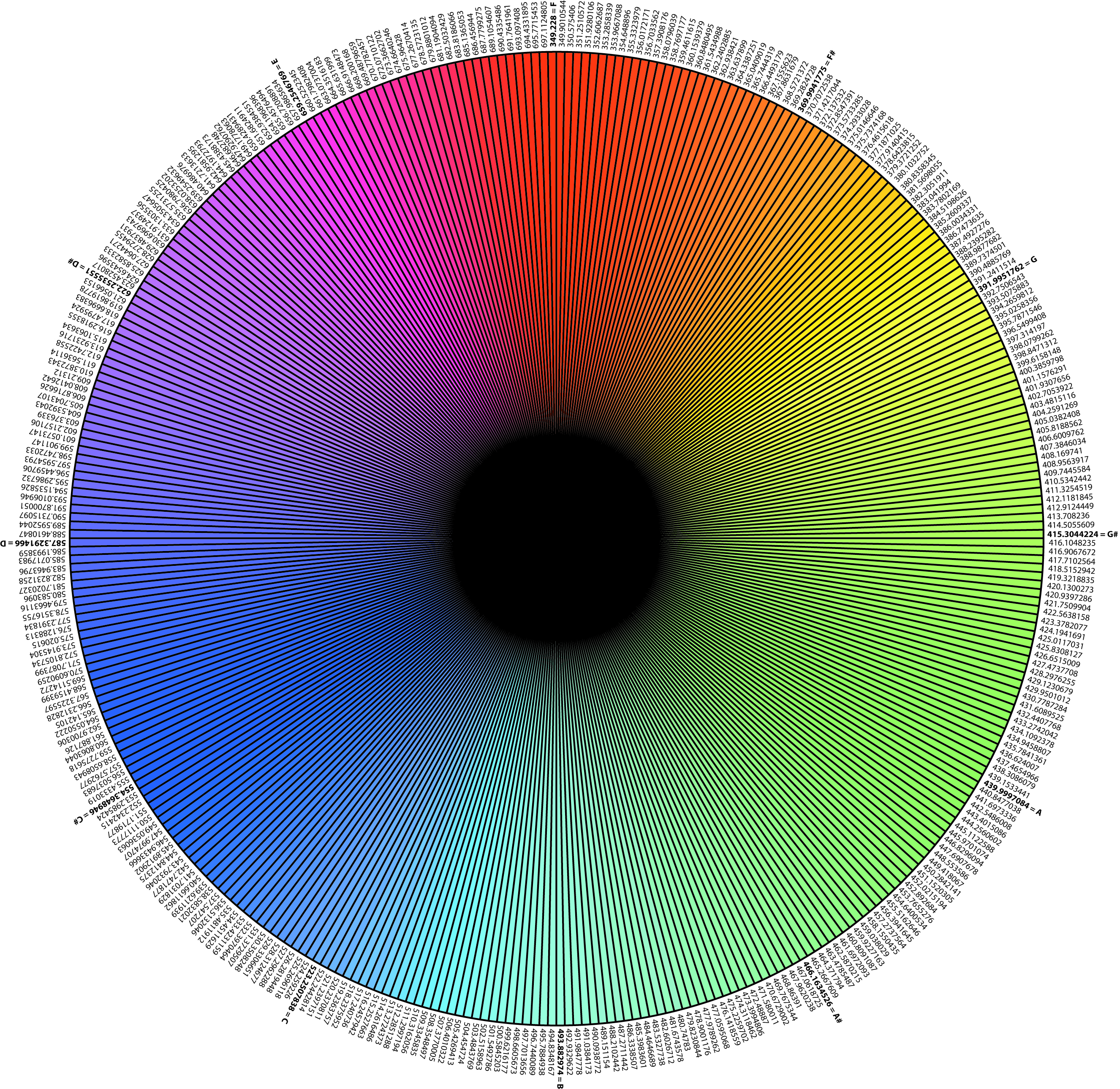

Sonochromatic Scale

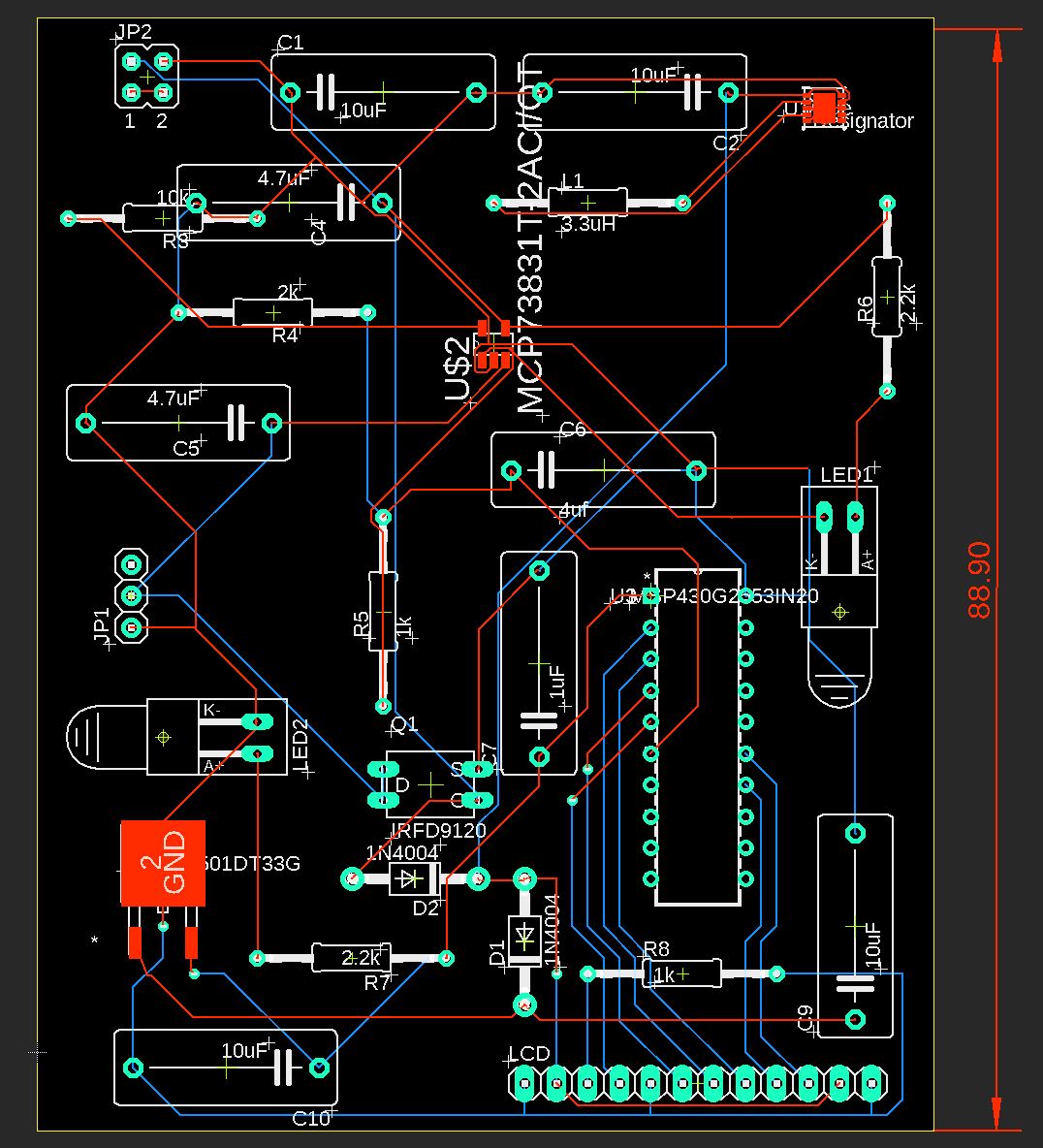

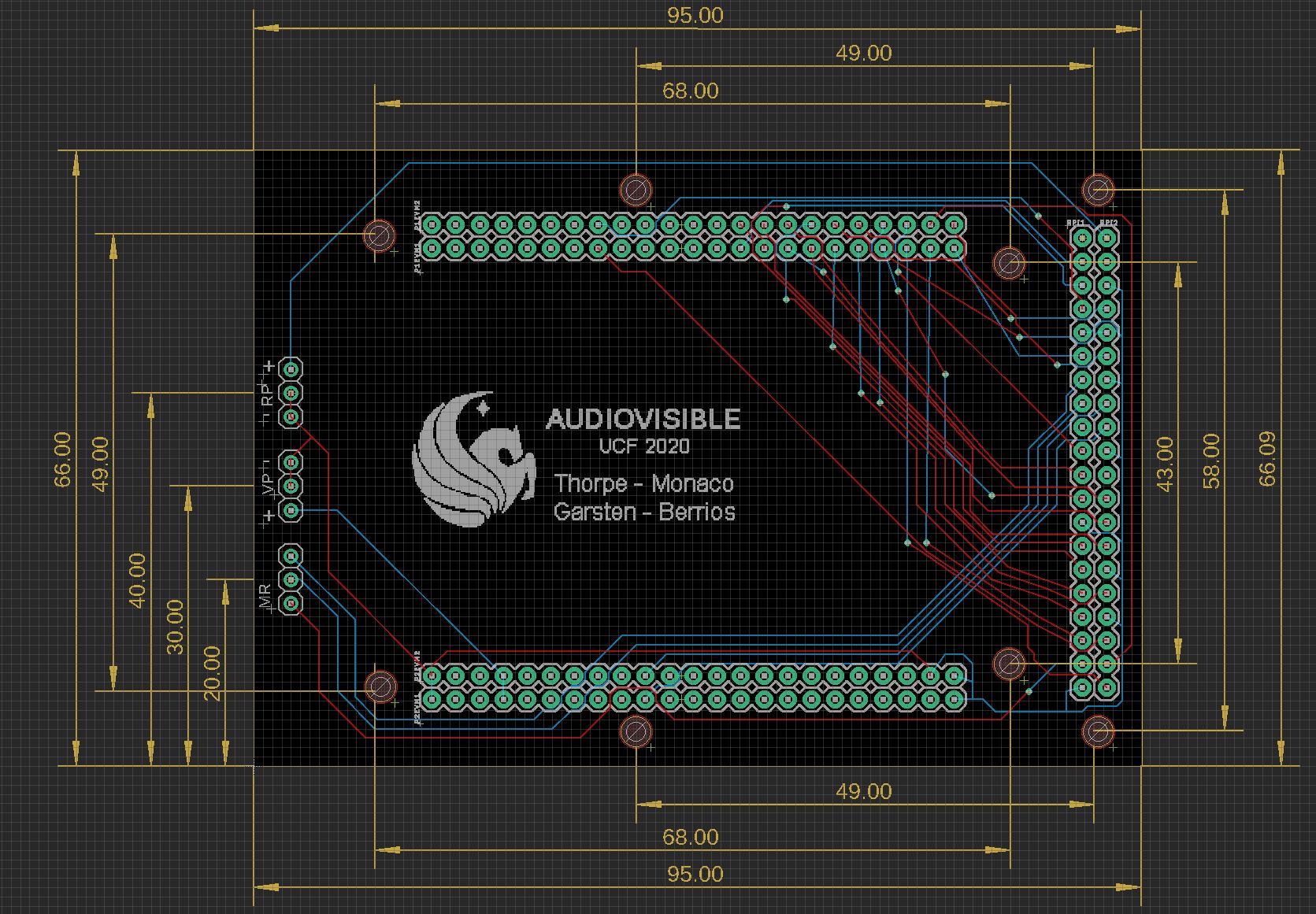

Initial PCB Design

CDR presentation

A Critical Design Review (CDR) is a multi-disciplined technical review to ensure that a system can proceed into fabrication, demonstration, and test and can meet stated performance requirements within cost, schedule, and risk.

Presentation

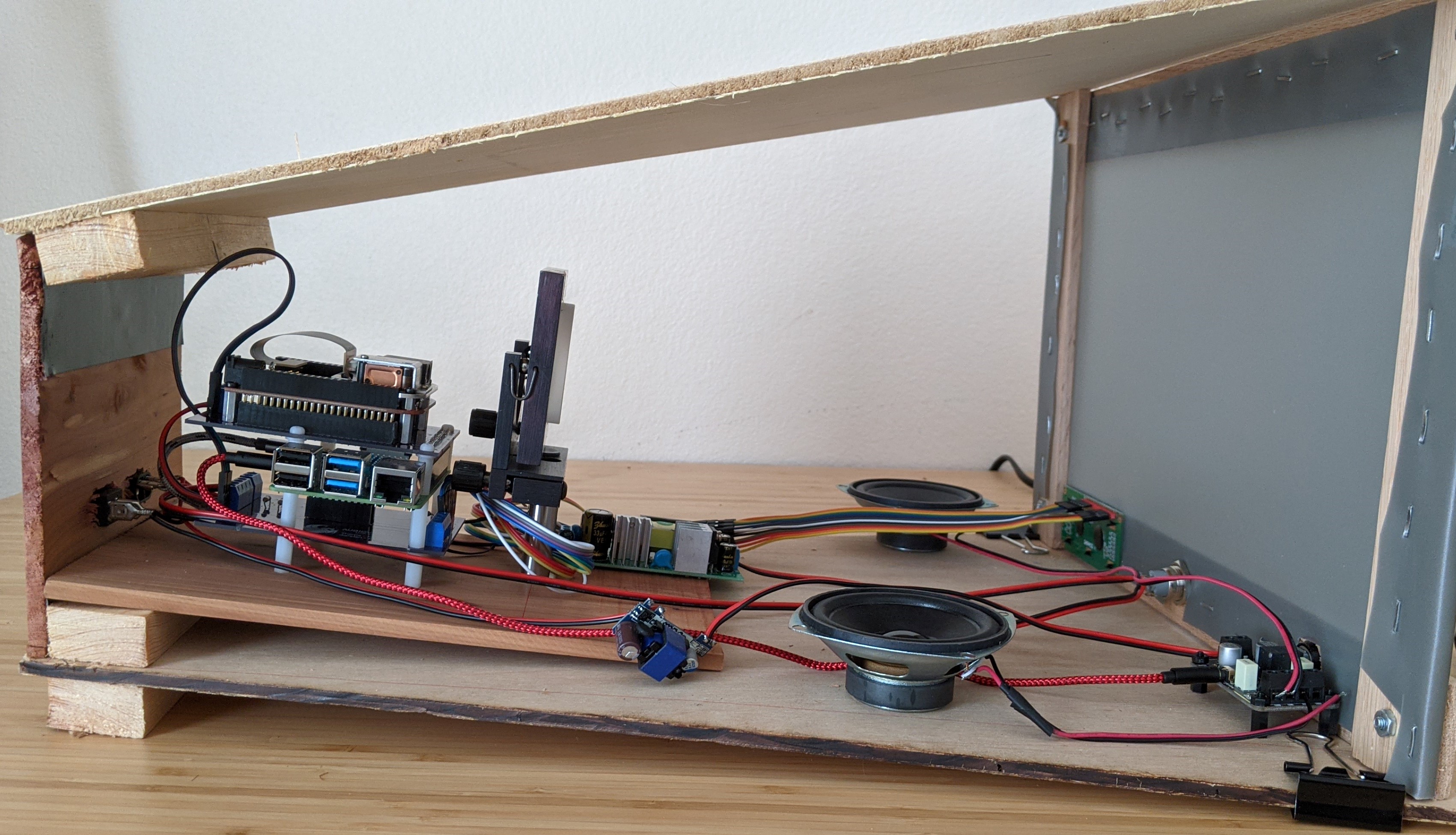

Enclosure
Challenges
Compromises

Conference Paper

The 8 page conference paper needed for engaging the reviewer committee.

System description and components

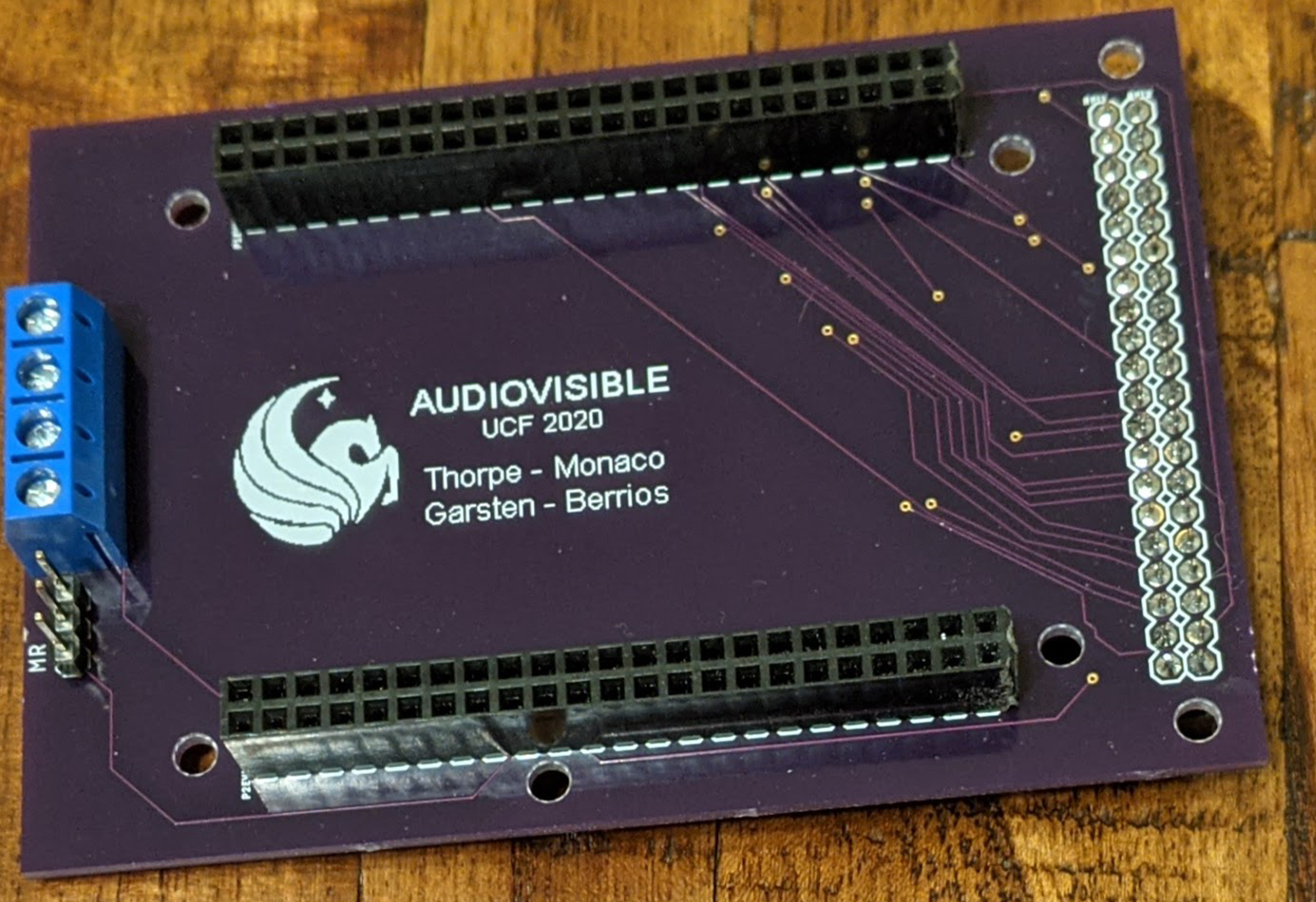

PCB Design
Optical Module
Microcontroller and LCD
Audio Output

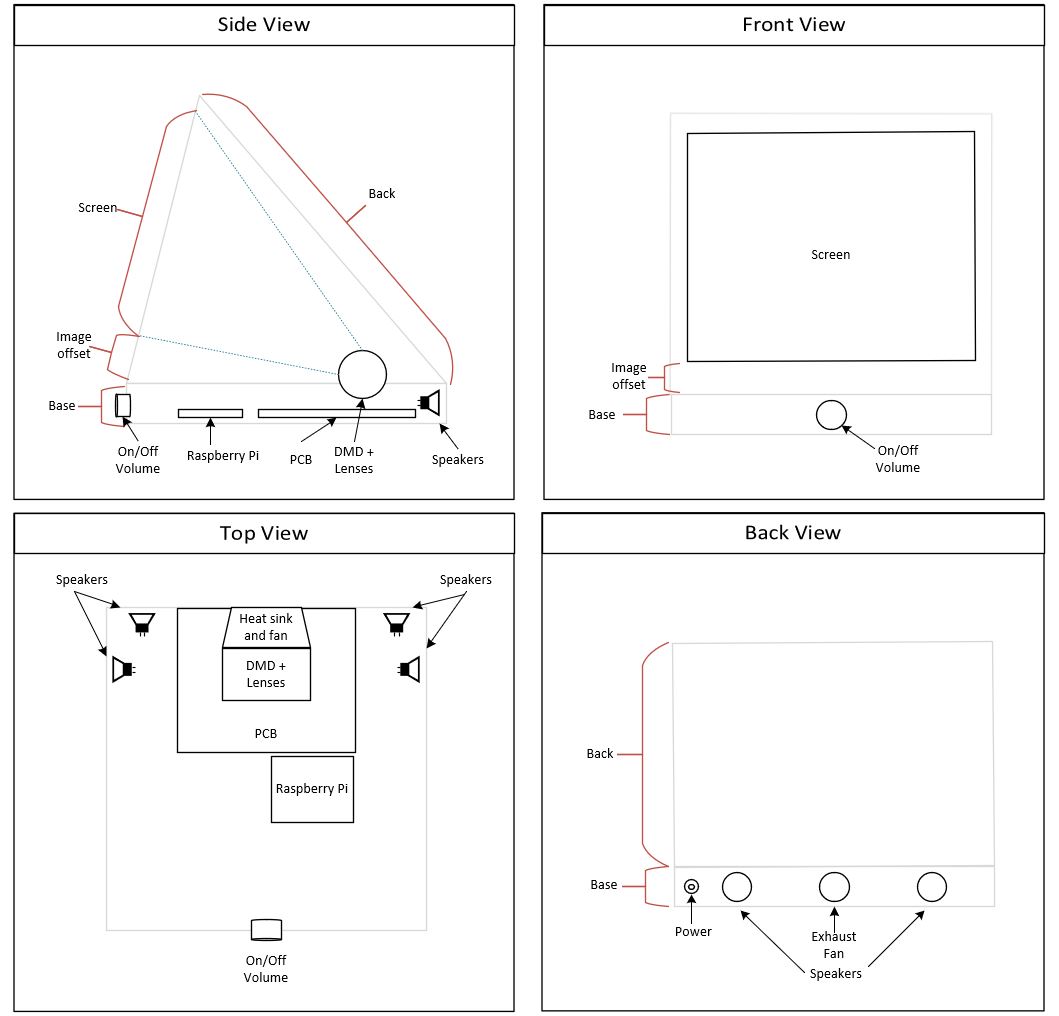

System concept

Final Presentation

This presentation was presented and recorded and available embeded in this website, as well as in YouTube.

Motivations and Objectives

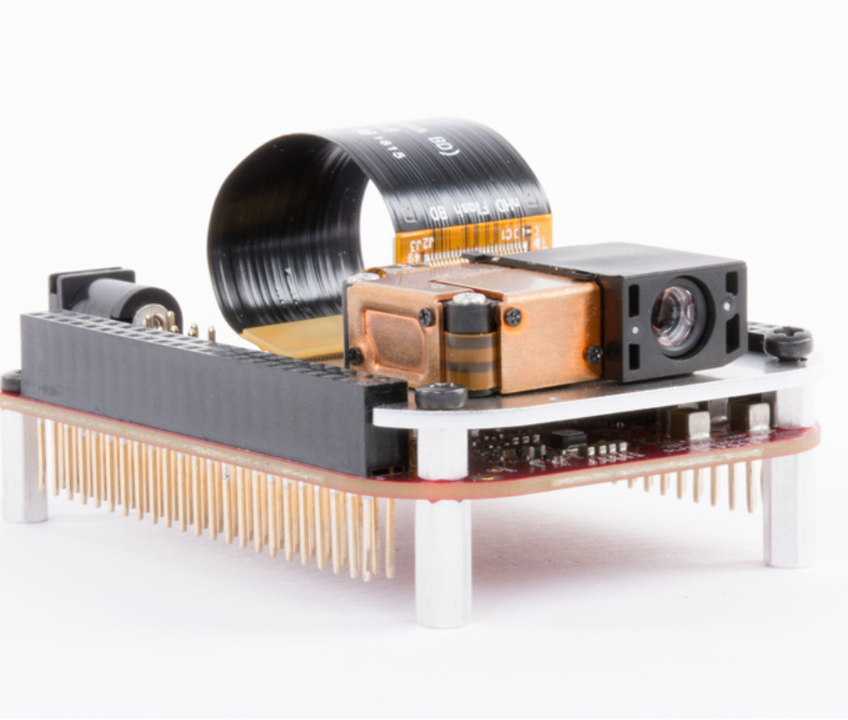

Optical Engine, DLP2000 and Lenses

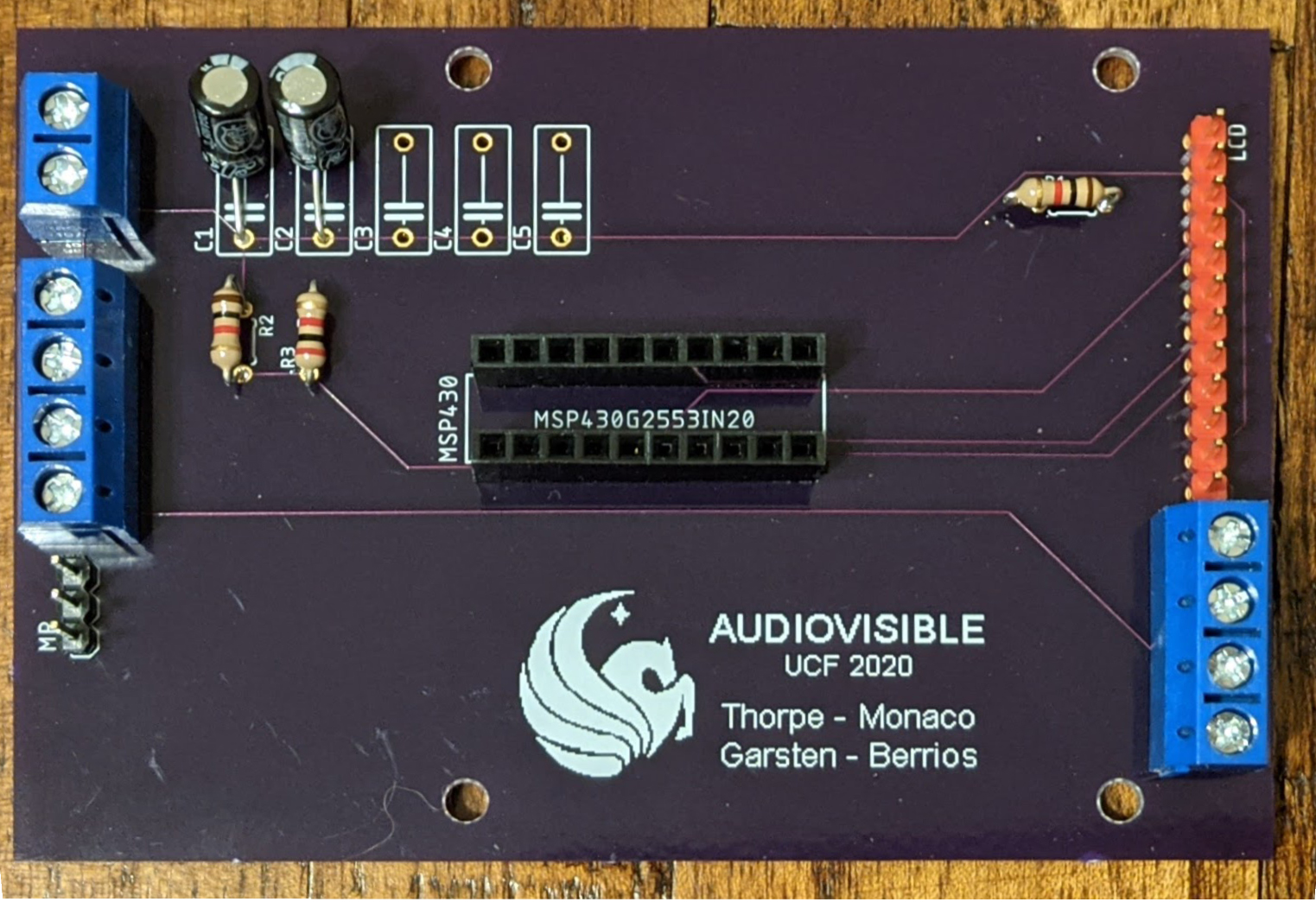

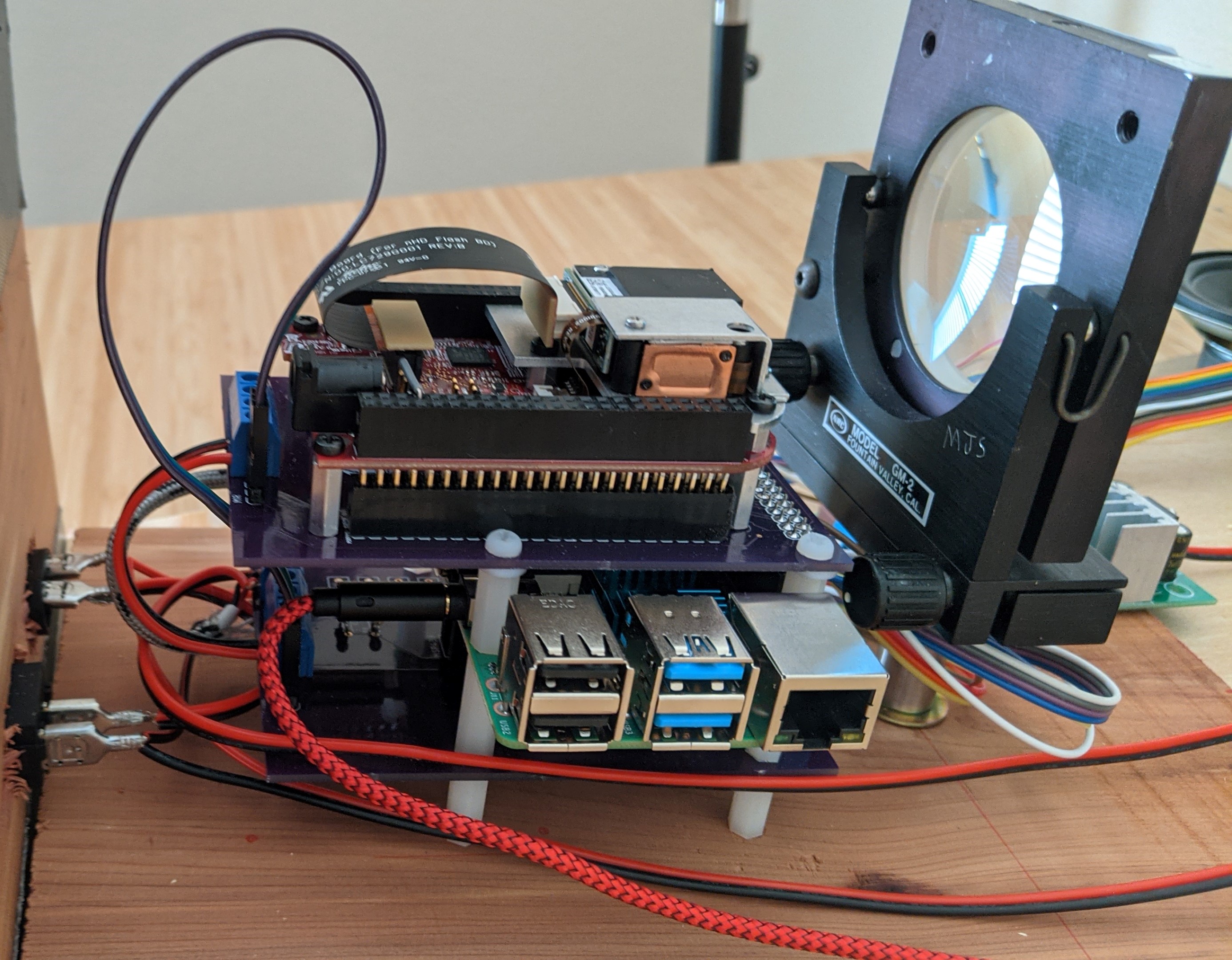

PCBs, LCD, Speakers and MSP430
Sonochromatic Scale, Webservice, Project Management

Final Document

The AUDIOVISIBLE device has been devised to fulfill a single yet daunting objective: to serve an underserve audience, and serve it well, by delivering the visual experience of an audio experience. In other words, this device will attempt to make music, visible, for the deaf and hard-of-hearing population.
