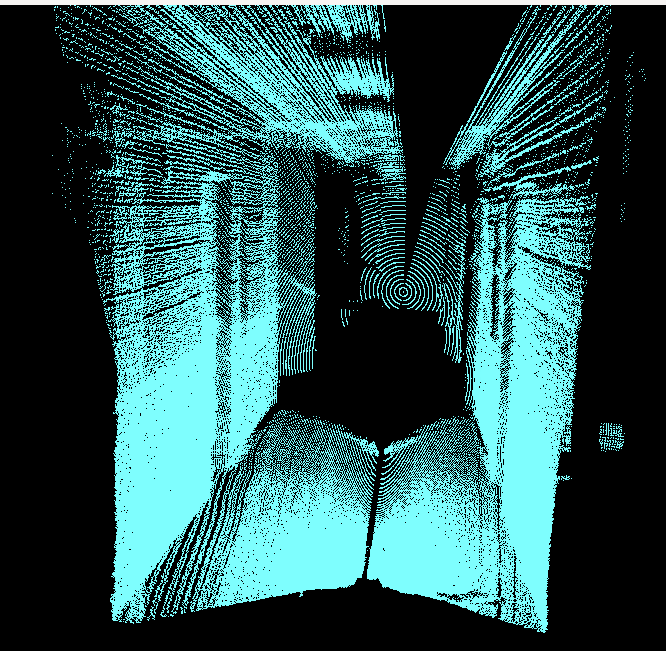

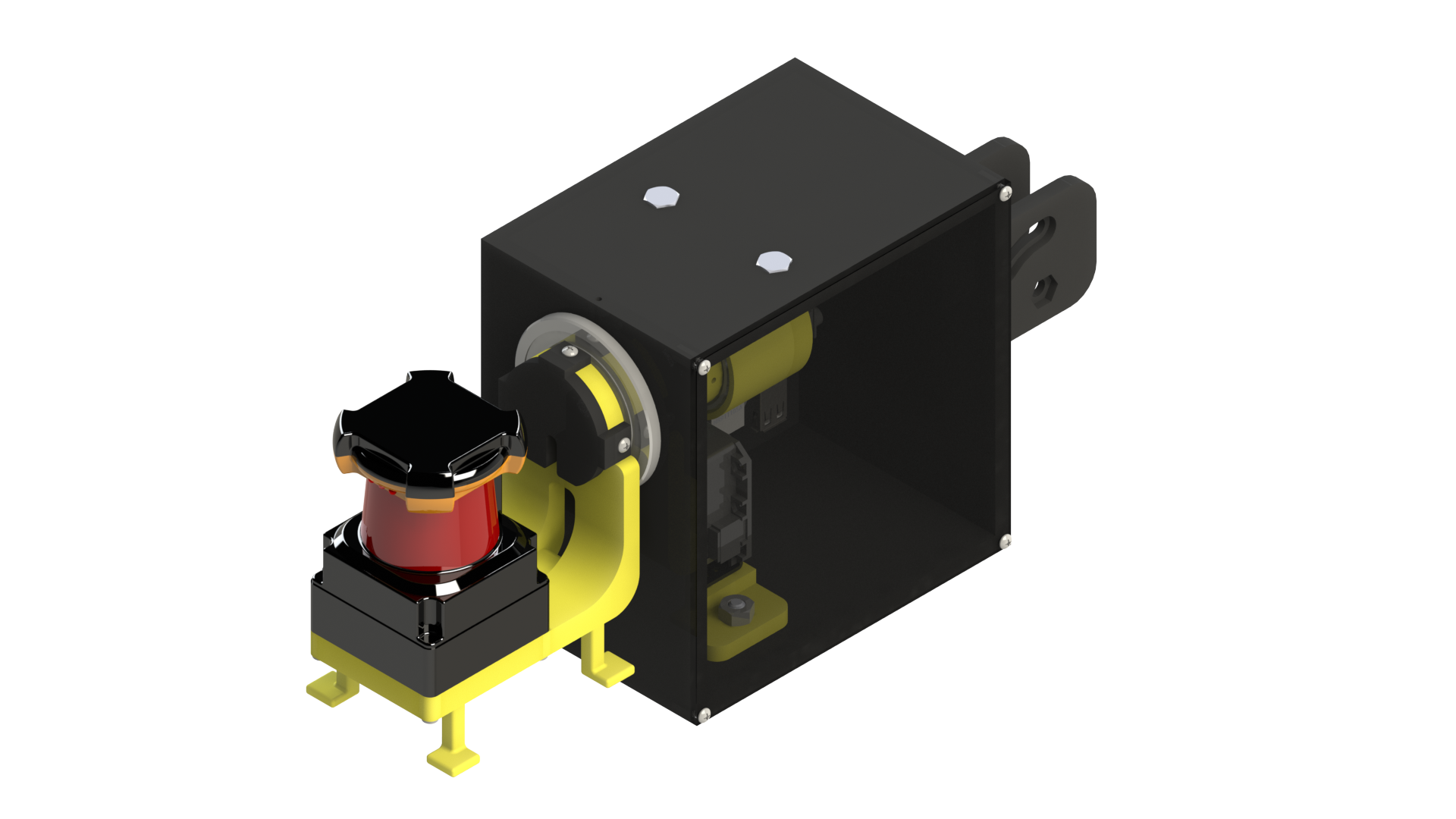

| The Pidar System | 3D Point Cloud |
Project Description
The Pidar provides 3 dimensional points to a client that represent a 3 dimensional environment. An infrared laser sensor provides distance data along a Z axis and angular data on an x axis. A motor rotates the laser mechanism around a Y axis; this supplies the system with the necessary data in order to create a 3D point cloud representation of an environment. The Pidar utilizes a Linux operating system in order to manage the flow of information from the external sensors to an independent client.
Sponsor
We would like to thank the UCF Robotics club for their support in this project. http://robotics.ucf.edu/
